FACTORY & QUALITY
Follow the product through the work.
Read the representative process from fabrication through final envelope review, then request the records relevant to your model.
One activity. One clear check.
Each visualization keeps the worker, tool and inspected component visible together. They are representative process visualizations, not photographs of a specific factory. Exact plans, methods, acceptance criteria and records must be confirmed for the selected model and order.

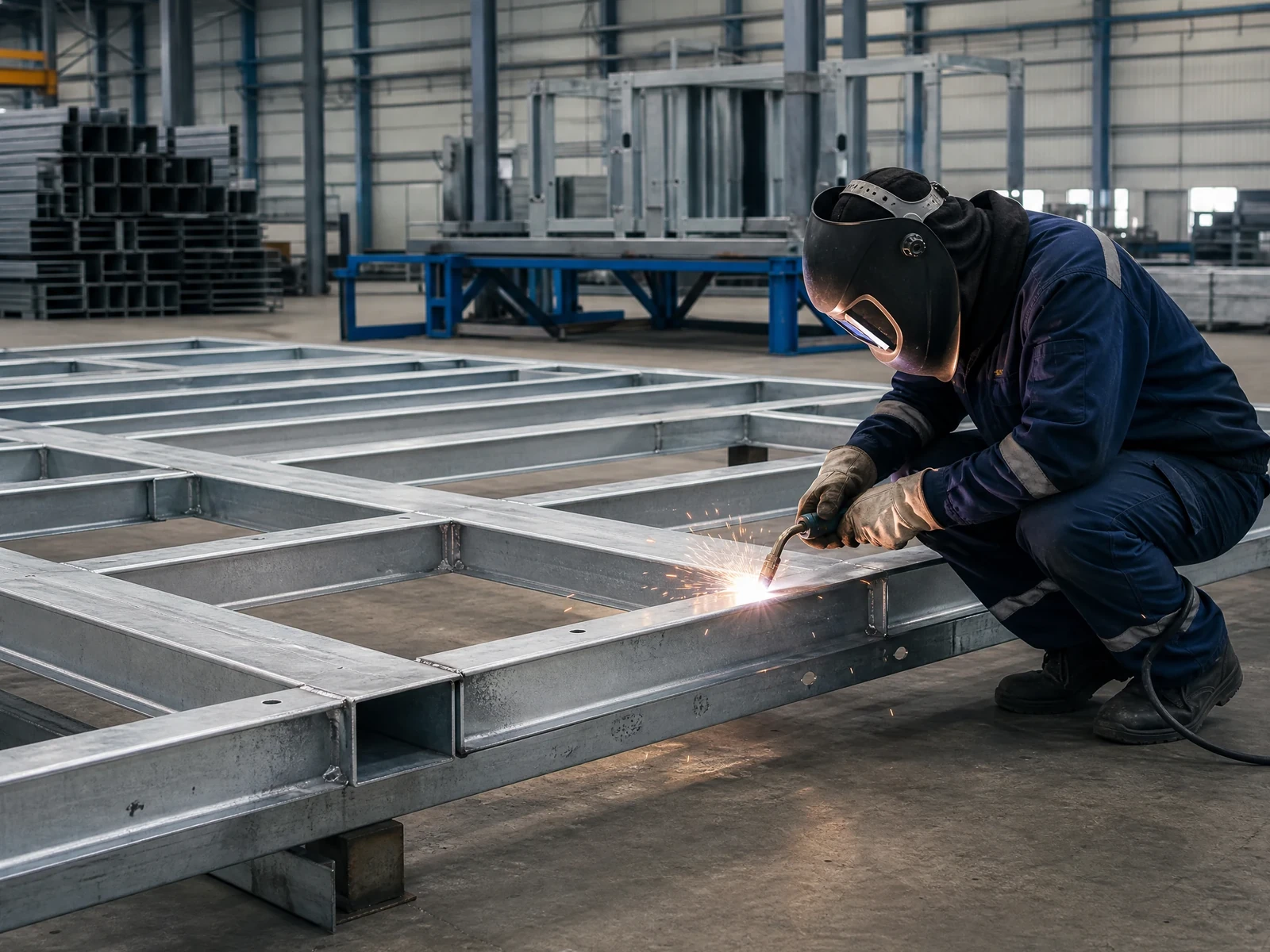

Review visible joints, dimensions and model-specific openings.

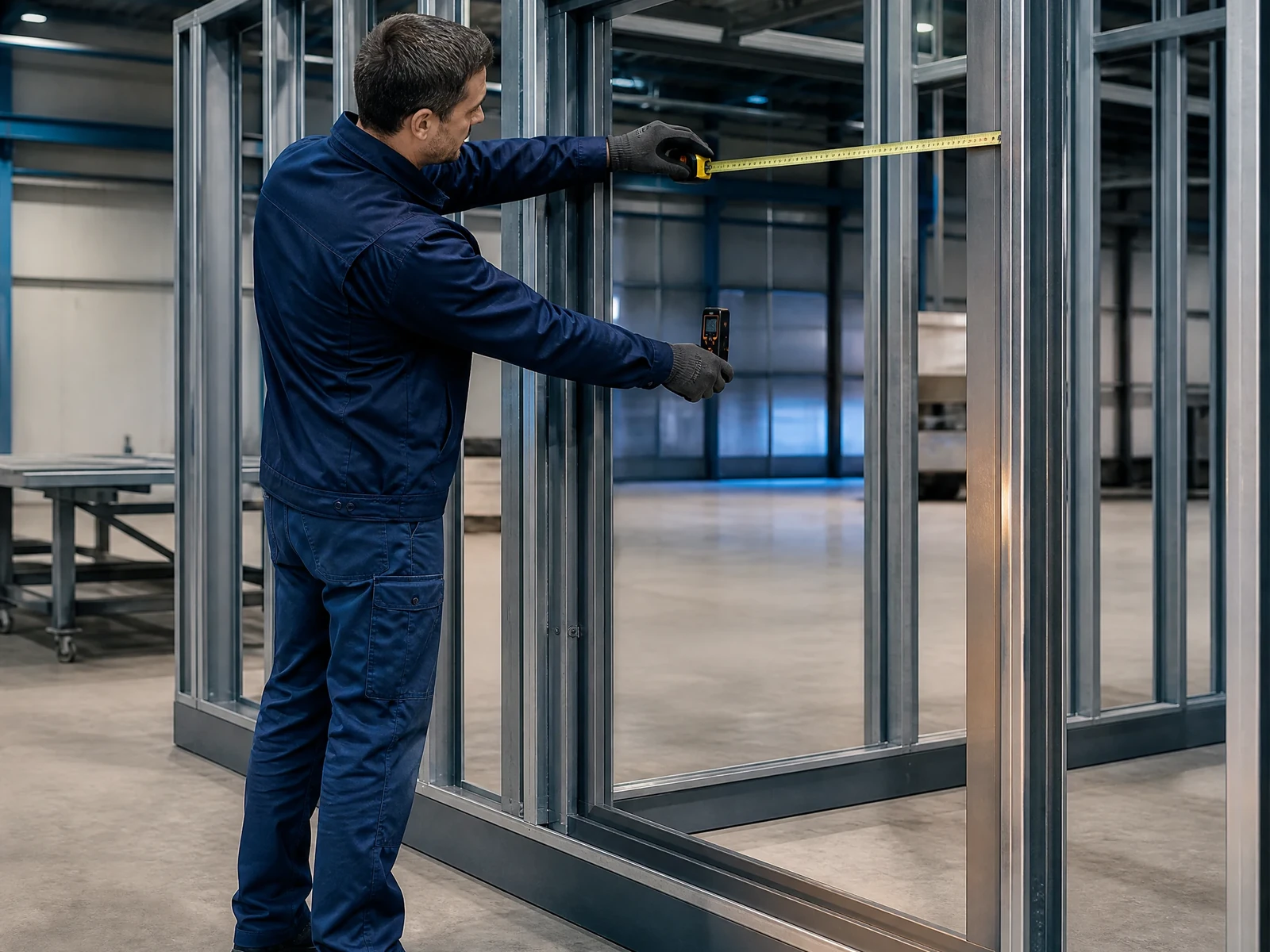

Compare the fabricated frame with the confirmed model drawing.

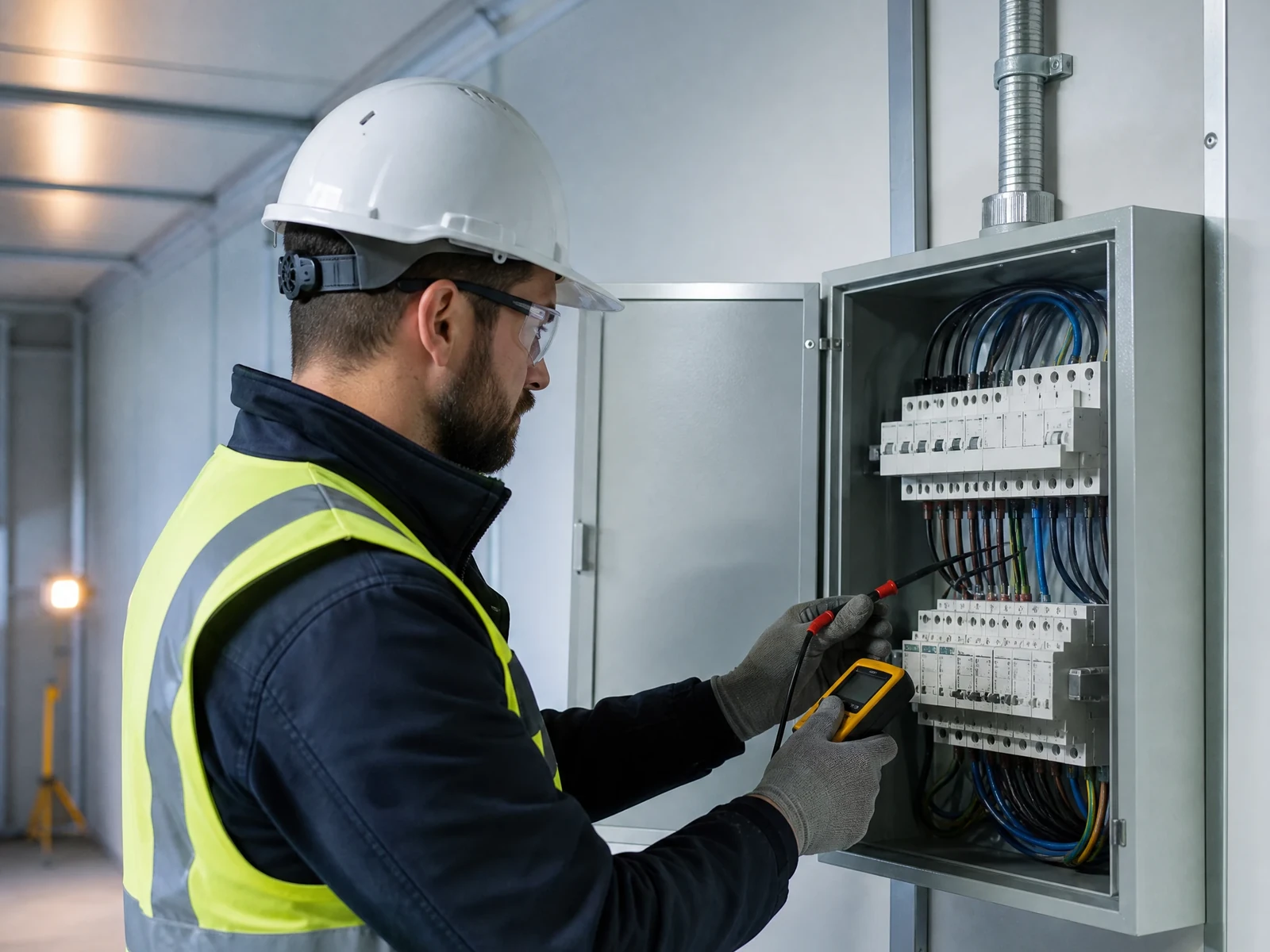

Connect visible checks to the configured system and recorded result.

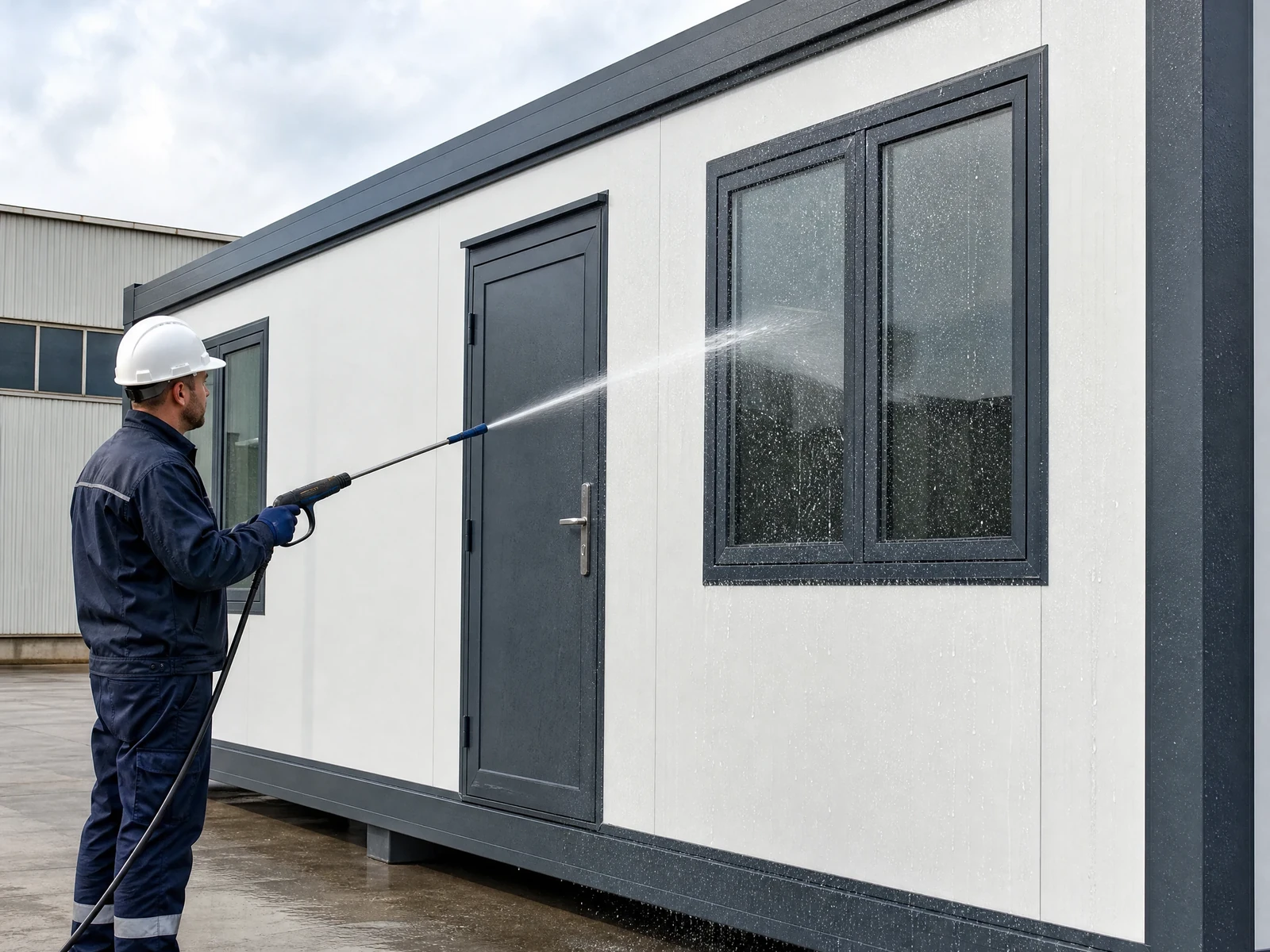

Record the inspected area, method, result and corrective action when needed.

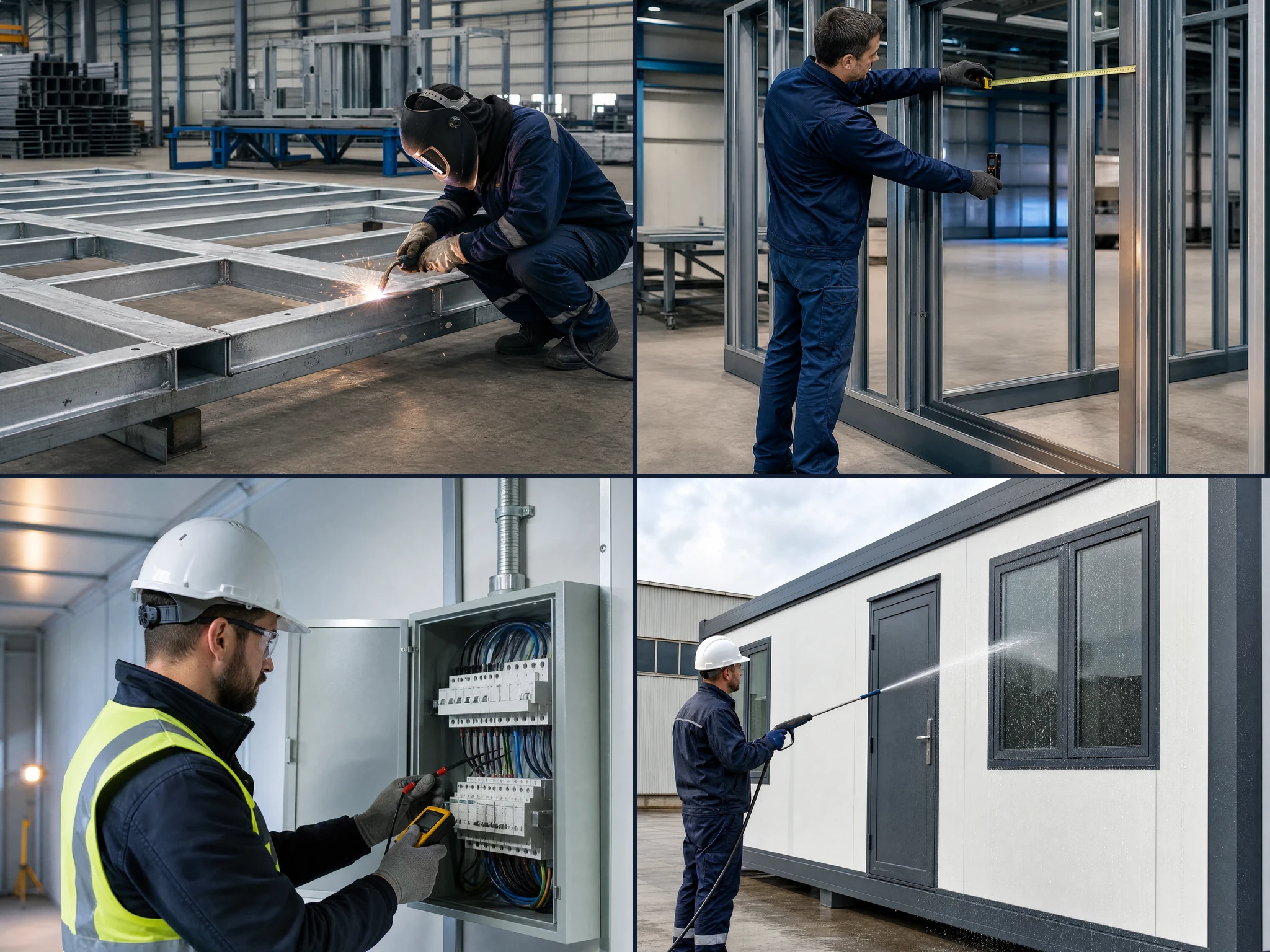

Representative process visualizations — not photographs of a specific factory.
Inspection records should follow the product.
A badge cannot explain which model, version, test or shipment it covers. Use an evidence register instead.
- Product definition
- Model drawings, dimensions, material schedule and configuration sheet.
- Production record
- Stage checks, issue records and applicable inspection evidence.
- Document status
- Issuer, scope, version, effective date and model applicability.
- Shipment readiness
- Packing list, labels, loading record and buyer/site responsibilities.
